Category : Cable trays, accessories and tools ,
Company : Electro Steel - cable tray system -

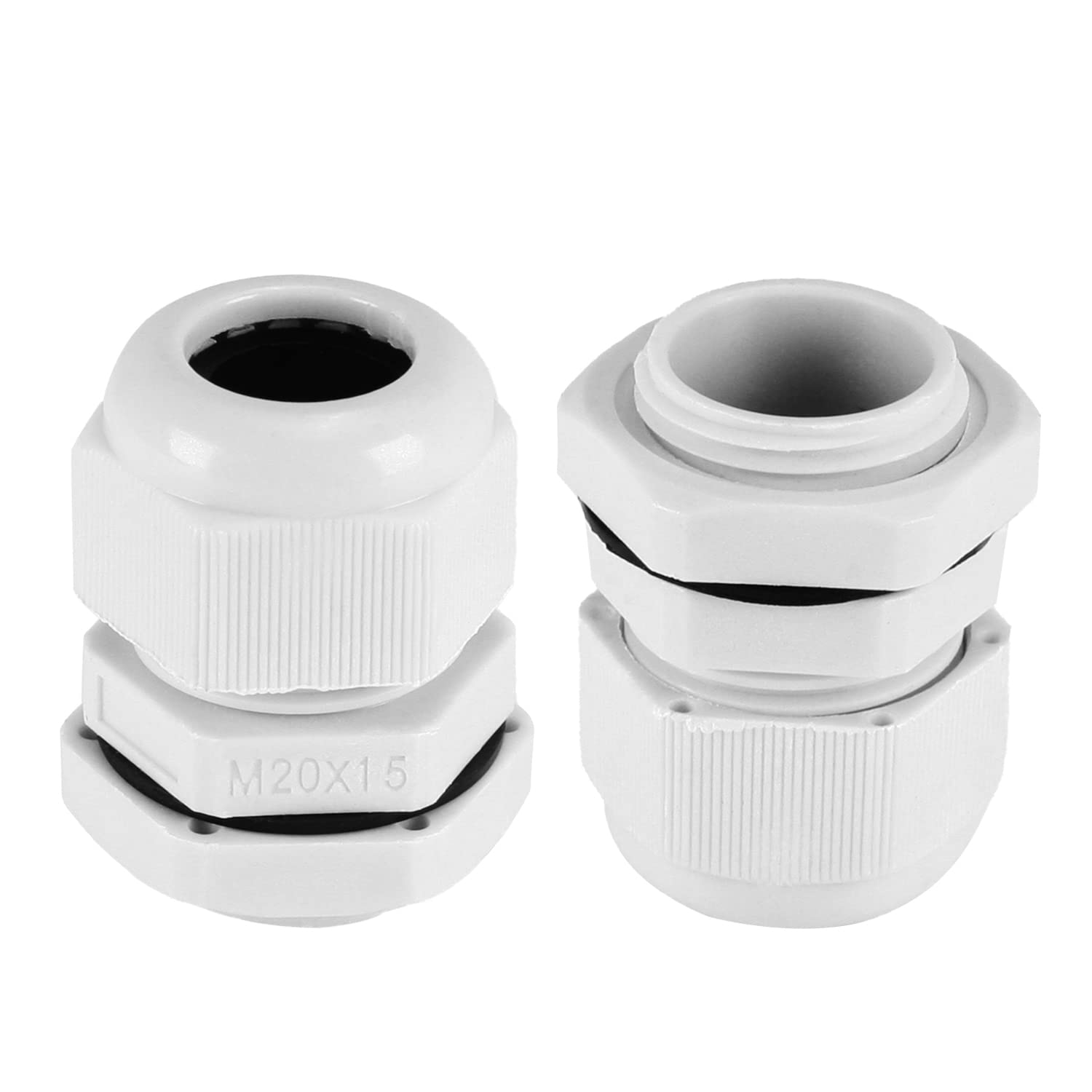

Product Description Details:
Thread: G(PF)3/4"
Thread Length: 15mm (0.59inches)
Cable Management: 13-18mm (0.51inches-0.71inches)
Protection Level: IP68-10
Waterproof: Yes
Material: Nylon 66
Working Temperature: -40℃~+100℃ (short work in +120℃)
Package Included: 5pcs cable gland with locknut
Features:
Excellent Strain Relief
UL Approved
RoHS Compliant
ISO9001:2015 Certified
More:
| Thread | Cable Range (mm) | Thread O.D. (mm) | Thread Length (mm) | Spanner Size (mm) | Wholesale Package (pcs/bag) |
| PF1/4" | 4-8 | 13.2 | 8.5 | 19/19 | 50 |
| PF3/8" | 5-10 | 16.7 | 10 | 22/22 | 50 |
| PF1/2" | 6-13 | 21.0 | 10 | 27/24 | 50 |
| PF3/4" | 13-18 | 26.5 | 15 | 36/33 | 50 |
| PF1" | 18-25 | 33.3 | 17 | 46/41 | 20 |
| PF1-1/4" | 24-32 | 42.0 | 17 | 57/52 | 10 |
| PF1-1/2" | 30-41 | 48.0 | 17 | 60/62 | 10 |
