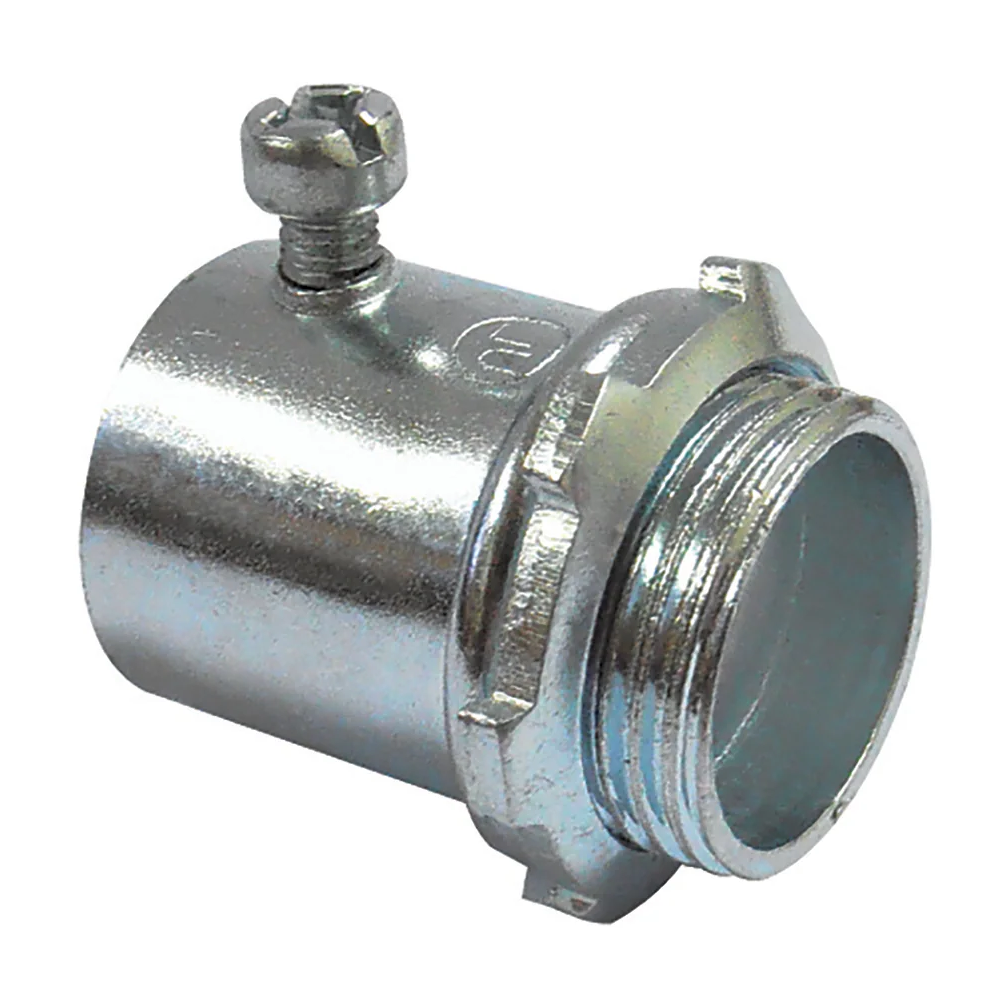

Set Screw Connector, for EMT Conduit

Product Description

CATALOG NUMBER	TRADE SIZE	INNER CARTON	MASTER CARTON
66001	1/2''	50	500
66002	3/4''	25	250
66003	1''	20	200
66004	1 1/4''	-	25
66005	1 1/2''	-	25
66006	2''	-	20
66007	2 1/2''	-	12
66008	3''	-	12
66009	3 1/2''	-	6
66010	4''	-	6

CAT#	A	B	C
66001	1.314	0.407	0.848
66002	1.468	0.417	1.057
66003	1.685	0.492	1.338
66004	2.106	0.574	1.688
66005	2.283	0.633	1.929
66006	2.598	0.720	2.381
66007	3.299	0.720	3.161
66008	3.779	0.889	3.787
66009	3.921	0.889	4.283
66010	4.039	0.889	4.803
